LNC Coupling

LNC couplings are made according to EN ISO 14420-5. LNC fittings include external BSP coupling-GA and hexagon swivel female BSP coupling-GI. Both LNC GI and GA can be assembled with hoses by DIN EN14420-3 safety clamps.

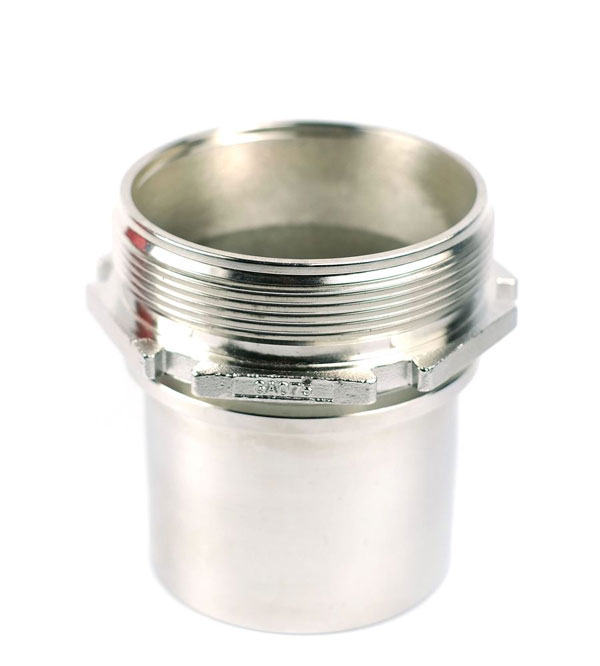

Stainless Steel LNC hose tail coupling-GA

Stainless Steel LNC hose tail coupling-GA

Material: SS304 or SS316 by investment casting
Production Standard: EN 14420/ DIN2817
Gasket: NBR,PU,PTFE,VITON
Hose tail type: Smooth or Serrated
Thread:Male BSP
Size: 1/2″ to 4″

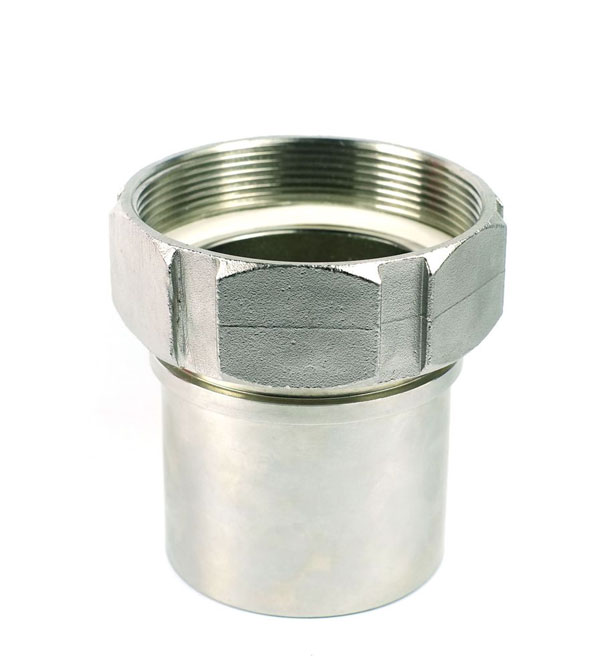

Stainless Steel LNC hose tail coupling-GI

Stainless Steel LNC hose tail coupling-GI

Material: SS304 or SS316 by investment casting
Production Standard: EN 14420/ DIN2817
Gasket: NBR,PU,PTFE,VITON
Hose tail type: Smooth or Serrated
Thread: Female BSP
Size: 1/2″ to 4″

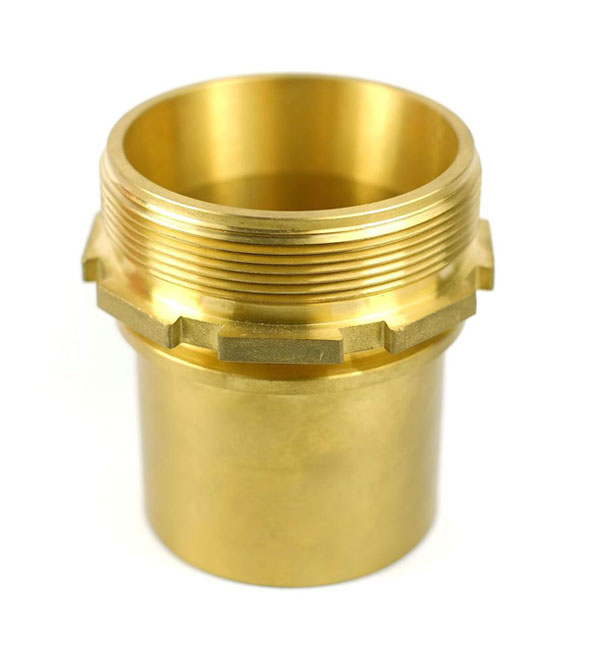

Brass TW hose tail coupling-GA

Brass TW hose tail coupling-GA

Material: Brass by forging
Production Standard: EN 14420/ DIN2817
Gasket: NBR,PU,PTFE,VITON
Hose tail type: Smooth or Serrated
Thread:Male BSP
Size: 1/2″ to 4″

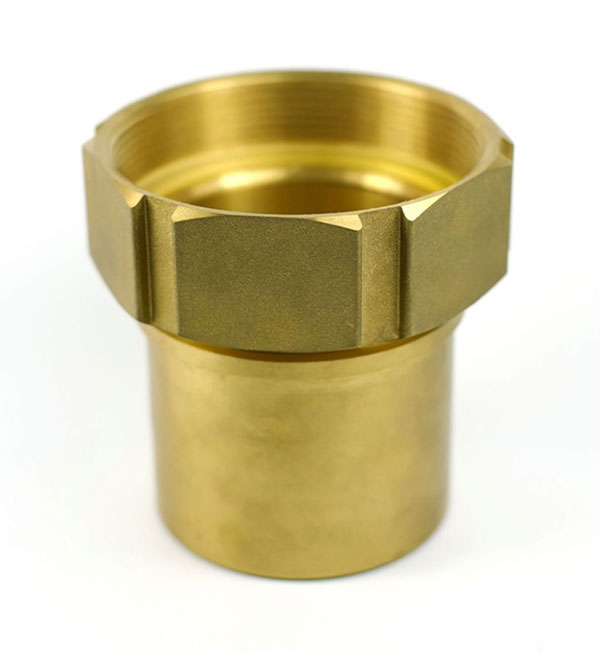

Brass TW hose tail coupling-GI

Brass TW hose tail coupling-GI

Material: Brass by forging
Production Standard: EN 14420/ DIN2817
Gasket: NBR,PU,PTFE,VITON
Hose tail type: Smooth or Serrated
Thread:Female BSP
Size: 1/2″ to 4″

We will reply to your email within 24 hours.

Remarks: Minimum order quantity - 50 pcs

LNC Couplings
