Nylon Camlock Fitting
Glass-fiber reinforced nylon camlock couplings are manufactured according to MIL-C-27487 specifications and interchangeable with other coupling – metal or plastic. Nylon hose couplings have good resistance against abrasion and chemical corrosion, so they can directly contact with water, coolants, gasoline and varnish.
Nylon camlock fittings are extremely lightweight yet strong. They are designed to connect pump, tank, and equipment to suction/discharge hose in a fast and safe way. In agriculture application, acid-based fertilizers are not recommended. EPDM gaskets and stainless steel handles, pins and rings are also supplied. Always confirm the gasket material and camlock material is compatible with the media to be delivered.

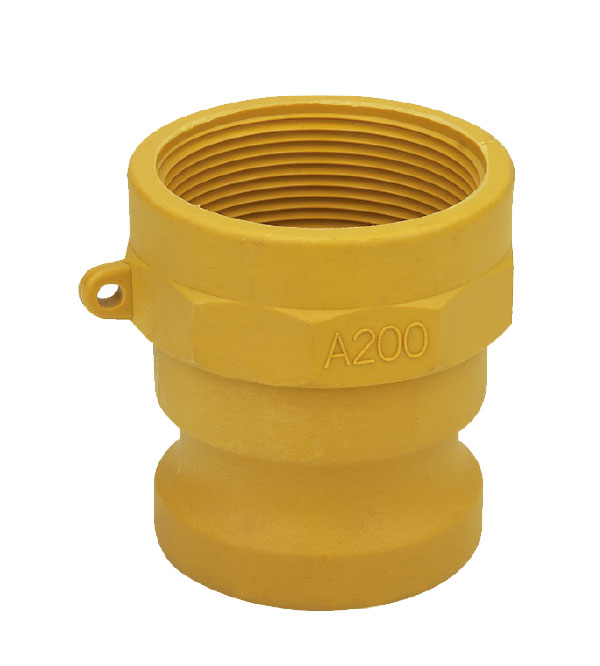

Nylon Camlock Fitting Type A
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

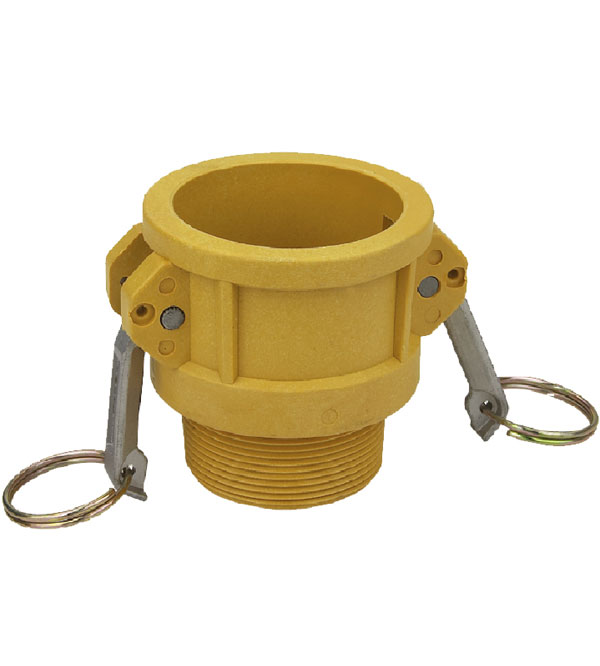

Nylon Camlock Fitting Type B
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

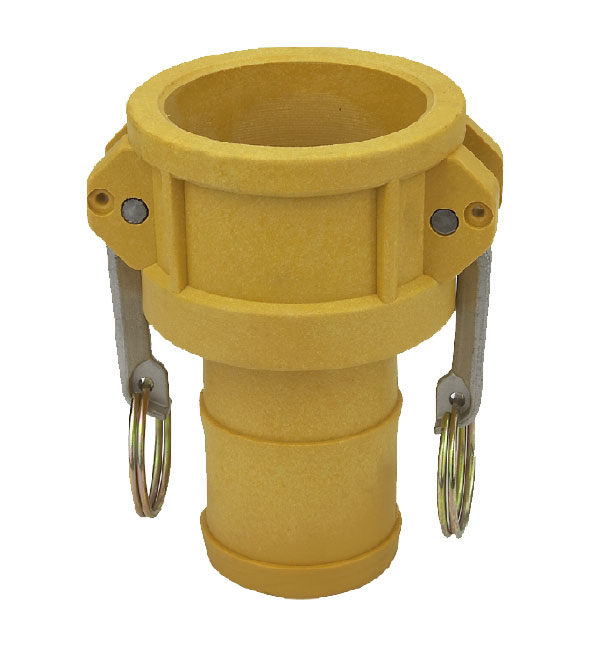

Nylon Camlock Fitting Type C
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

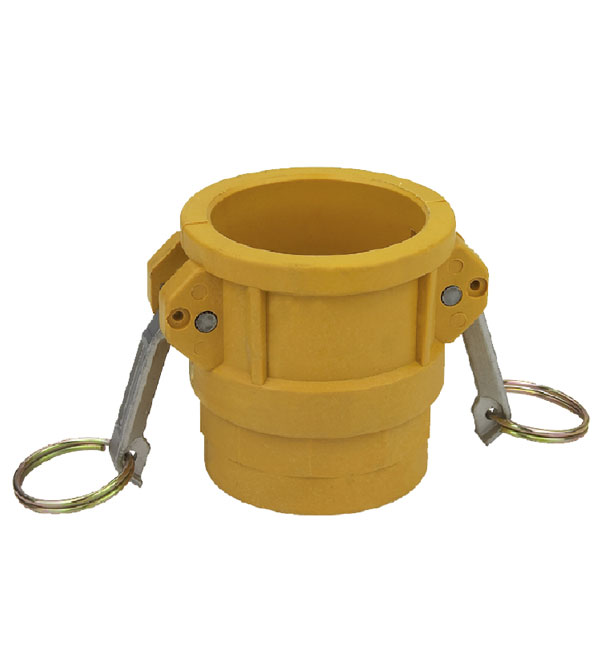

Nylon Camlock Fitting Type D
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

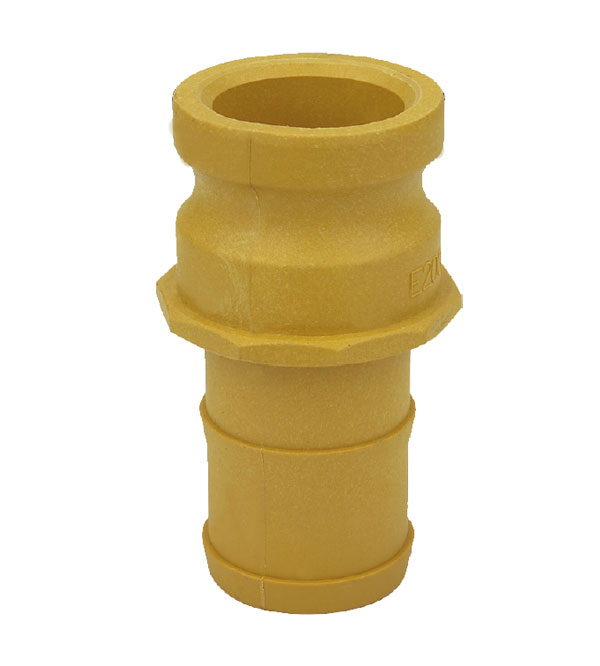

Nylon Camlock Fitting Type E
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

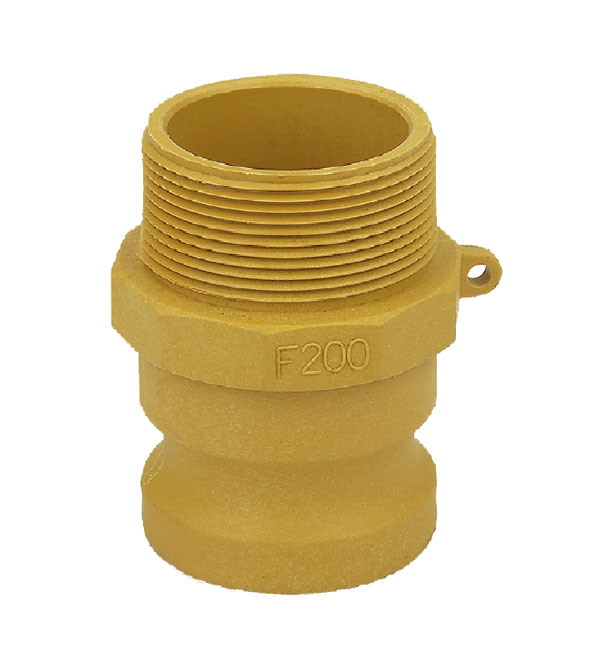

Nylon Camlock Fitting Type F
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

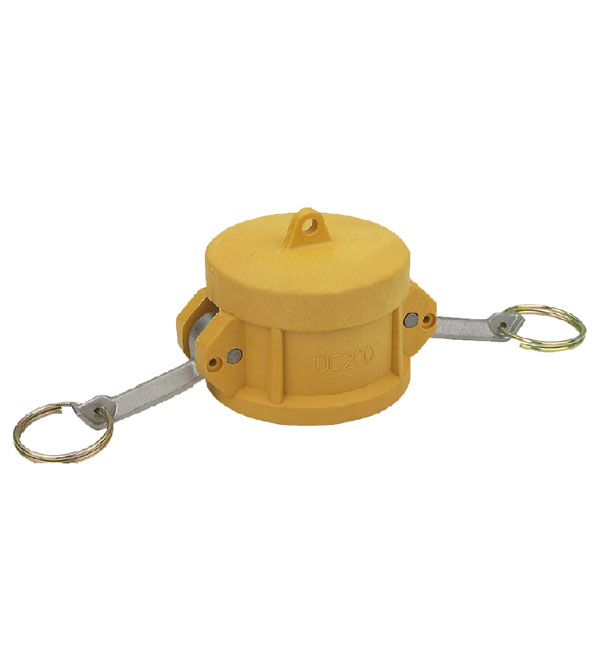

Nylon Camlock Fitting Type DC
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″

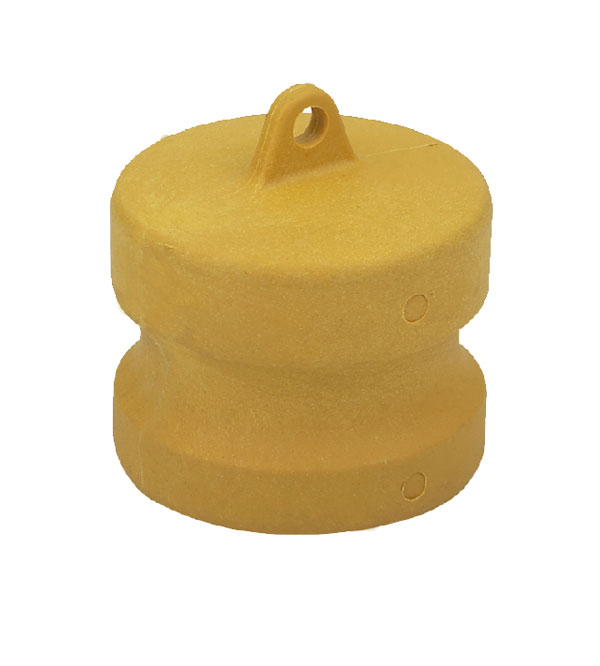

Nylon Camlock Fitting Type DP
Material: Nylon or PP
Handle: Brass & stainless steel
Gasket: NBR, EPDM, Viton, PTF
Thread: ISO228(BSP)/ISO7(BSPT)/ANSI B1.20(NPT)
Size:from 1/2″ to 6″
